Inconel 718 Bolts

Buy Inconel 718 bolts, studs, nuts and other fasteners from Boltport, an Indian manufacturer & supplier of Inconel 718 bolting materials to ASTM B637, A1014, UNS N07718, and DIN EN 2.4668 specifications with high yield strength, excellent resistance to corrosion, oxidation and heat, suitable for high temperature bolting applications, up to 1000º C (1800º F). Inconel 718 bolts have high yield and twice the strength as of Inconel 718 bolts.

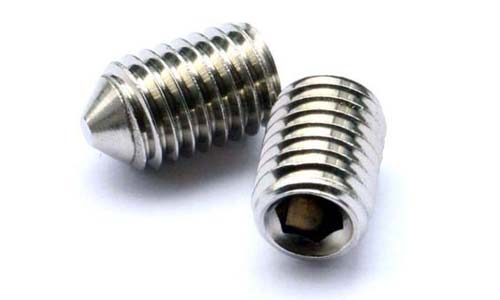

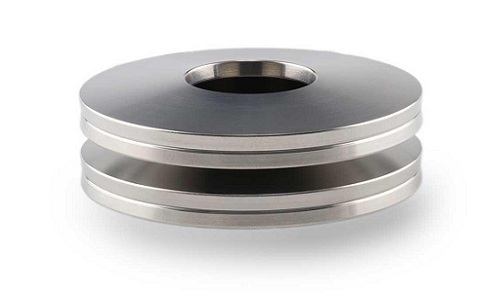

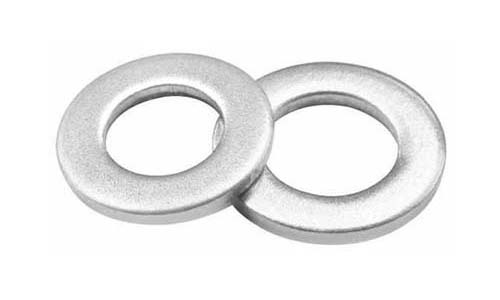

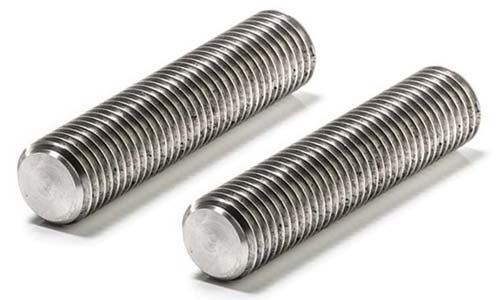

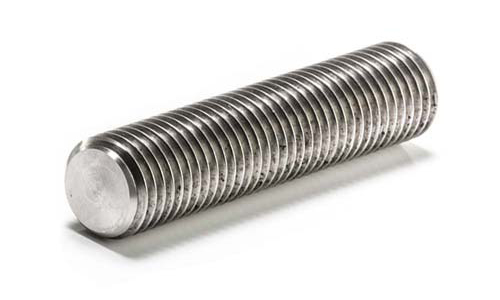

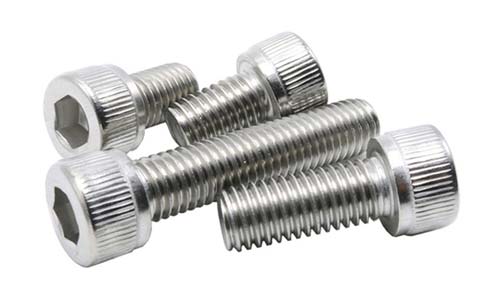

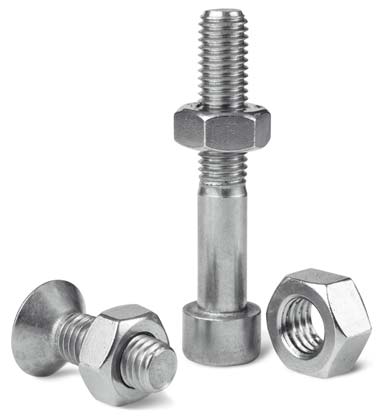

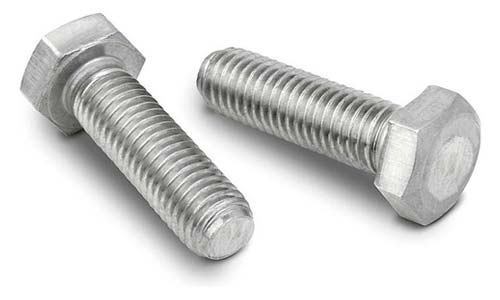

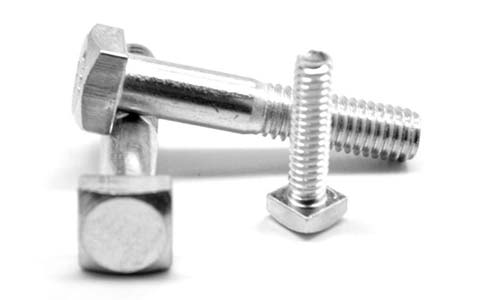

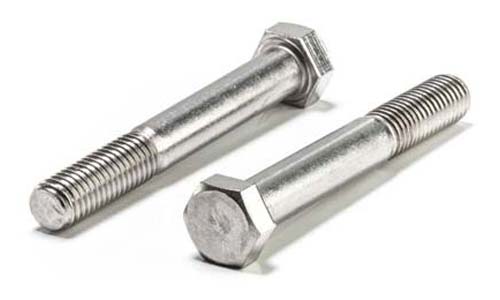

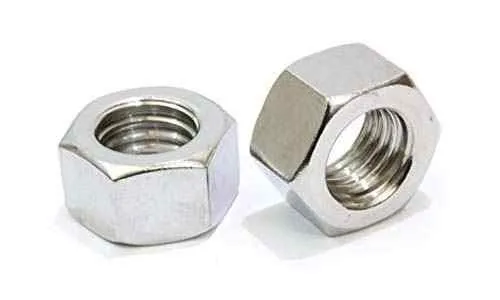

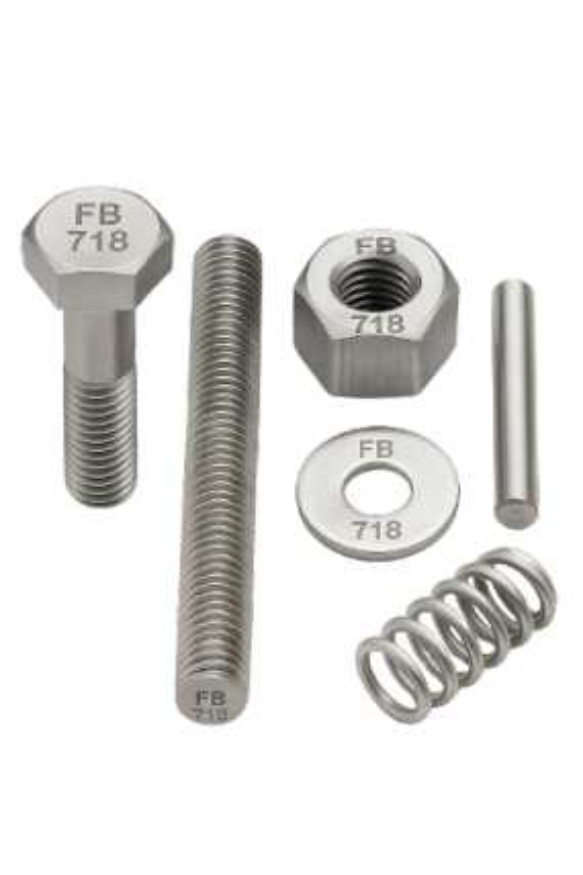

Boltport fasteners manufactures Inconel 718 bolts, studs, nuts and washer in standard and custom design to your specification. We covers Inconel 718 hex bolts, studs, stud bolts, set screws, socket head cap screws, hex nuts, plain & belleville washers, threaded rod and other fastener in metric and inch sizes with coarse, fine and extra fine threads to ASME, UN, BS, ISO and DIN standards.

Need Inconel 718 Bolt Price ? Click

Inconel 718 Bolting Products

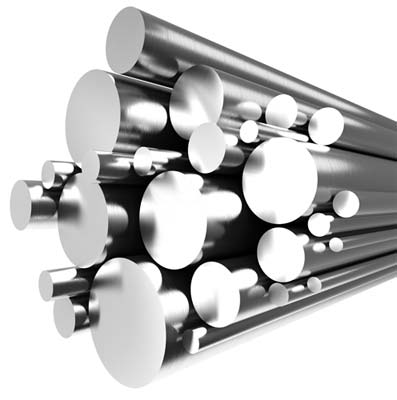

Inconel 718 Bolting Material Specifications

ASTM B637 / ASME SB637
ASTM B670 / ASME SB670
ASTM A1014 / A1014M
ASTM F2281
AMS 5666
Alloy 718
UNS N07718
DIN / EN / Werkstoff No. 2.4668

Need More Information on Inconel 718 ? Click

Inconel 718 Bolt Properties

Chemical Composition
Elements	Ni + Co	Fe	Cr	Nb + Ta	Mo	Ti	Co	Al	Mn	Si	Cu	C	P	S	B
Min %	50	-	17.0	4.75	2.80	0.65	-	0.20	-	-	-	-	-	-	-
Max %	55	Bal	21.0	5.50	3.30	1.15	1.0	0.80	0.35	0.35	0.30	0.08	0.015	0.015	0.006

Mechanical Properties
Temperature (°F)	Ultimate Tensile (ksi)	Yield Strength at 0.2% Offset(ksi)	Elongation %
Room Temp.	210	175	22
400	198	163	20
800	191	156	19
1000	185	155	18
1200	168	149	19
1400	111	110	27
