Inconel 718 Eyebolt to DIN 444 Type A Eye Bolts

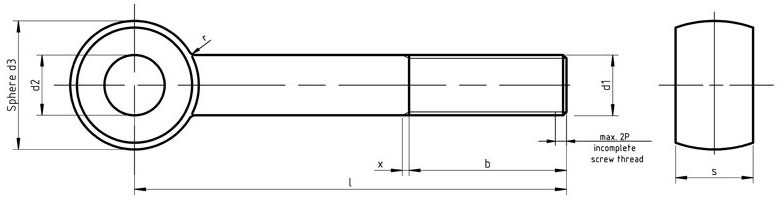

DIN 444 for Type A Eye Bolts Dimensions
| d1 | b L≤125 | b L>125≤200 | b L>200 | d2 H9 | d3 max | s max |
|---|---|---|---|---|---|---|
| M5 | 16 | - | - | 5 | 12 | 8 |
| M6 | 18 | - | - | 6 | 14 | 9 |
| M8 | 22 | 28 | - | 8 | 18 | 11 |
| M10 | 26 | 32 | - | 10 | 20 | 14 |
| M12 | 30 | 36 | 49 | 12 | 25 | 17 |
| M16 | 38 | 44 | 57 | 16 | 32 | 19 |
| M20 | 46 | 52 | 65 | 18 | 40 | 24 |
| M24 | 54 | 60 | 73 | 22 | 45 | 28 |
| M30 | 66 | 72 | 85 | 28 | 55 | 34 |
