Inconel 718 Heavy Hex Bolts to DIN 6914 Hexagon Head Bolts with Large Width Across Flats

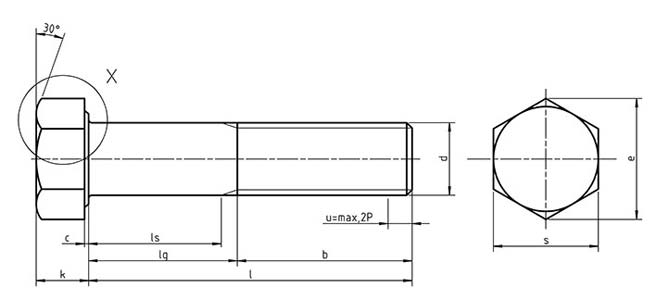

DIN 6914 Hexagon Head Bolts with Large Width Across Flats

DIN 6914 Hexagon Head Bolts with Large Width Across Flats Dimensions

d1	k	s	L ≤ ¹	b ¹	L ≥ ²	b ²	e min
M 12	8	22	40	21	45	23	23.91
M 16	10	27	70	26	75	28	29.56
M 20	13	32	85	31	90	33	35.03
M 22	14	36	85	32	90	34	39.55
M 24	15	41	85	34	90	37	45.20
M 27	17	46	95	37	100	39	50.85
M 30	19	50	95	40	100	42	55.37
M 36	23	60	95	48	100	50	66.44
