Inconel 718 Hex Head Bolts to JIS B 1180 Hexagon Head Bolts

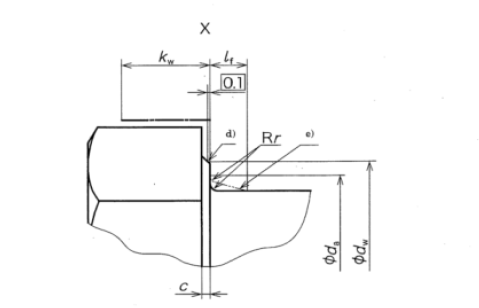

Nominal diameter hexagon head bolts, coarse, product grades A and B

Nominal diameter hexagon head bolt, coarse, product grade A and B

Notes

β = 15° to 30°
point shall be chamfered. FOr threads of M4 or under it may be as-rolled (see JIS B 1003).
Incomplete thread length at thread point u ≤ 2P.
Reference datum for d_w.
Maximum underhead fillet.

JIS B 1180 Nominal diameter heaxgon head bolt, coarse, product grade A and B (first selection) Dimensions

Unit:mm

Designation of thread (d)					M1.6		M2		M2.5		M3		M4		M5		M6		M8		M10
P^a					0.35		0.4		0.45		0.5		0.7		0.8		1		1.25		1.5
b (informative)			b)		9		10		11		12		14		16		18		22		26
			e)		15		16		17		18		20		22		24		28		32
			d)		28		29		30		31		33		35		37		41		45
c			max.		0.25		0.25		0.25		0.40		0.40		0.50		0.50		0.60		0.60
c			min.		0.10		0.10		0.10		0.15		0.15		0.15		0.15		0.15		0.15
d_a			max.		2		2.6		3.1		3.6		4.7		5.7		6.8		9.2		11.2
d_s	Reference dimensions max.				1.60		2.00		2.50		3.00		4.00		5.00		6.00		8.00		10.00
	Product grade	A	min.		1.46		1.86		2.36		2.86		3.82		4.82		5.82		7.78		9.78
	Product grade	B	min.		1.35		1.75		2.25		2.75		3.70		4.70		5.70		7.64		9.64
d_w	Product grade	A	min.		2.27		3.07		4.07		4.57		5.88		6.88		8.88		11.63		14.63
d_w	Product grade	B	min.		2.30		2.95		3.95		4.45		5.74		6.74		8.74		11.47		14.47
e	Product grade	A	min.		3.41		4.32		5.45		6.01		7.66		8.79		11.05		14.38		17.77
e	Product grade	B	min.		3.28		4.18		5.32		5.88		7.50		8.63		10.89		14.20		17.59
l_t			max.		0.6		0.8		1		1		1.2		1.2		1.4		2		2
k	Reference dimensions				1.1		1.4		1.7		2		2.8		3.5		4		5.3		6.4
	Product grade	A	max.		1.225		1.525		1.825		2.125		2.925		3.65		4.15		5.45		6.58
	Product grade	A	min.		0.975		1.275		1.575		1.875		2.675		3.65		3.85		5.15		6.22
	Product grade	B	max.		1.3		1.6		1.9		2.2		3.0		3.74		4.24		5.54		6.69
	Product grade	B	min.		0.9		1.2		1.5		1.8		2.6		3.26		3.76		5.06		6.11
k_w e)	Product grade	A	min.		0.68		0.89		1.10		1.31		1.87		2.35		2.70		3.61		4.35
k_w e)	Product grade	B	min.		0.63		0.84		1.05		1.26		1.82		2.28		2.63		3.54		4.28
r			min.		0.1		0.1		0.1		0.1		0.2		0.2		0.25		0.4		0.4
s	Reference dimension = max.				3.20		4.00		5.00		5.50		7.00		8.00		10.00		13.00		16.00
	Product grade	A	min.		3.02		3.82		4.82		5.32		6.78		7.78		9.78		12.73		15.73
	Product grade	B	min.		2.90		3.70		4.70		5.20		6.64		7.64		9.64		12.57		15.57
	Product grade				l_s and l_g^f)
	A		B		l_s and l_g^f)
nom. length	min.	max.	min.	max.	l_s min.	l_g max.	l_s min.	l_g max.	l_s min.	l_g max.	l_s min.	l_g max.	l_s min.	l_g max.	l_s min.	l_g max.	l_s min.	l_g max.	l_s min.	l_g max.	l_s min.	l_g max.
12	11.65	12.35	--	--	12	3							For Sizes of bolts with l above the solid, bols, stepped line, table 15 is recommended.
16	15.65	16.35	--	--	5.2	7	4	6	2.75	5
20	19.58	20.42	18.95	21.05			8	10	6.75	9	5.5	8
25	24.58	25.42	23.95	26.05					11.5	14	10.5	13	75	11	5	9
30	29.58	30.42	28.95	31.05							15.5	18	12.5	16	10	14	7	12
35	34.5	35.5	33.75	36.25									17.5	21	15	19	12	17
40	39.5	40.5	38.75	41.25									22.5	26	20	24	17	22	11.75	18
45	44.5	45.5	43.75	46.25											25	29	22	27	16.75	23	11.5	19
50	49.5	50.5	48.75	51.25											30	34	27	32	21.75	28	16.5	24
55	54.4	55.6	53.5	56.5													32	37	26.75	33	21.5	29
60	59.4	60.6	58.5	61.5													37	42	31.75	38	26.5	34
65	64.4	65.6	63.5	66.5															36.75	43	31.5	39
70	69.4	70.6	68.5	71.5															41.75	48	36.5	44
80	79.4	80.6	78.5	81.5															51.75	58	46.5	54
90	89.3	90.7	88.25	91.75																	56.5	64
100	99.3	100.7	98.25	101.75																	66.5	74
110	109.3	110.7	108.25	111.75
120	119.3	120.7	118.25	12.75

Unit:mm

Designation of thread (d)					M12		M16		M20		M24		M30		M36		M42		M48		M56		M64
P^a					1.75		2		2.5		3		3.5		4		4.5		5		5.5		6
b (informative)			b)		30		38		46		54		64		--		--		--		--		--
			e)		36		44		52		60		72		84		96		108		--		--
			d)		49		57		65		73		85		97		109		121		137		153
c			max.		0.60		0.08		0.08		0.08		0.08		0.08		1.0		1.0		1.0		1.0
c			min.		0.15		0.2		0.2		0.2		0.2		0.2		0.3		0.3		0.3		0.3
d_a			max.		13.7		17.7		22.4		26.4		33.4		39.4		45.6		52.6		63		71
d_s	Reference dimensions max.				12.00		16.00		20.50		24.00		30.00		36.00		42.00		48.00		56.00		64.00
	Product grade	A	min.		11.73		15.73		19.67		23.67		--		--		--		--		--		--
	Product grade	B	min.		11.57		15.57		19.48		23.48		29.48		35.48		41.38		47.38		55.26		63.26
d_w	Product grade	A	min.		16.63		22.49		28.19		33.61		--		--		--		--		--		--
d_w	Product grade	B	min.		16.47		22		27.7		32.25		42.75		51.11		59.95		69.45		78.66		88.16
e	Product grade	A	min.		20.03		26.75		33.53		39.98		--		--		--		--		--		--
e	Product grade	B	min.		19.85		26.17		32.95		39.55		50.85		60.79		71.3		82.6		93.56		104.86
l_t			max.		3		3		4		4		6		6		8		10		12		13
k	Reference dimensions				7.5		10		12.5		15		18.7		22.5		26		30		35		40
	Product grade	A	max.		7.68		10.18		12.715		15.215		--		--		--		--		--		--
	Product grade	A	min.		7.32		9.82		12.285		14.785		--		--		--		--		--		--
	Product grade	B	max.		7.79		10.29		12.85		15.35		19.12		22.92		26.42		30.42		35.5		40.5
	Product grade	B	min.		7.21		9.71		12.15		14.65		18.28		28.08		25.58		29.58		34.5		39.5
k_w e)	Product grade	A	min.		5.12		6.87		8.6		10.35		--		--		--		--		--		--
k_w e)	Product grade	B	min.		5.05		6.8		8.51		10.26		12.8		15.46		17.91		20.71		24.15		27.65
r			min.		0.6		0.6		0.8		0.8		1		1		1.2		1.6		2		2
s	Reference dimension = max.				18.00		24.00		30.00		36.00		46		55.0		65.0		75.0		85.0		95.0
	Product grade	A	min.		17.73		23.67		29.67		35.38		--		--		--		--		--		--
	Product grade	B	min.		17.57		23.16		29.16		35.00		45		53.8		63.1		73.1		82.8		92.8
	Product grade				l_s and l_g^f)
	A		B		l_s and l_g^f)
nom. length	min.	max.	min.	max.	l_s min.	l_g max.	l_s min.	l_g max.	l_s min.	l_g max.	l_s min.	l_g max.	l_s min.	l_g max.	l_s min.	l_g max.	l_s min.	l_g max.	l_s min.	l_g max.	l_s min.	l_g max.	l_s min.	l_g max.
50	49.5	50.5	--	--	11.25	20
55	54.4	55.6	53.5	56.5	16.25	25
60	59.4	60.6	58.5	61.5	21.25	30
65	64.4	65.6	63.5	66.5	26.5	35.5	17	27
70	69.4	70.6	68.5	71.5	31.25	40	22	32
80	79.4	80.6	78.5	81.5	41.25	50	32	42	21.5	34
90	89.3	90.7	88.25	91.75	51.25	60	42	52	31.5	44	21	36
100	99.3	100.7	98.25	101.75	61.25	70	52	62	41.5	54	31	21
110	109.3	110.7	108.25	111.75	71.25	80	62	72	51.5	64	41	56	26.5	44
120	119.3	120.7	118.25	121.75	81.25	90	72	82	61.5	74	51	66	36.5	54
130	129.2	130.8	128	132			76	86	65.5	78	55	70	40.5	58
140	139.2	140.8	138	142			86	96	75.5	88	65	80	50.5	68	36	56
150	149.2	150.8	148	152			96	106	85.5	98	75	90	60.5	78	46	66
160	--	--	158	162			106	116	95.5	108	85	100	70.5	88	56	76	41.5	64
180	--	--	178	182					11.5	128	105	120	90.5	108	76	96	61.5	84	47	72
200	--	--	197.7	202.3					135.5	148	125	140	110.5	128	96	116	81.5	104	67	92
220	--	--	217.7	222.3							132	147	117.5	135	103	123	88.5	111	74	99	55.5	83
240	--	--	237.7	242.3							152	167	137.5	155	123	143	108.5	131	94	119	75.5	103
260	--	--	257.4	262.6									157.5	175	143	163	128.5	151	114	139	95.5	123	77	107
280	--	--	277.4	282.6									177.5	195	163	183	148.5	171	134	159	115.5	143	97	127
300	--	--	297.4	302.6									197.5	215	183	203	168.5	191	154	179	135.5	163	117	147
320	--	--	317.15	322.85											203	223	188.5	211	174	199	155.5	183	137	167
340	--	--	317.15	322.85											223	243	208.5	231	194	219	175.5	203	157	187
360	--	--	357.15	362.85											243	263	228.5	251	214	239	19.5	223	177	207
380	--	--	377.15	382.85													248.5	271	234	259	215.5	243	197	227
400	--	--	397.15	402.85													268.5	291	254	279	235.5	263	218	247
420	--	--	416.85	423.15													288.5	311	274	299	255.5	283	237	267
440	--	--	436.85	443.15													308.5	331	294	319	275.5	303	257	287
460	--	--	456.85	463.15															314	339	295.5	323	277	307
480	--	--	476.85	483.15															334	359	315.5	343	297	327
500	--	--	496.85	503.15																	335.5	363	317	347
Prefered lengths are defined in terms of l_s and l_g: --- product grade A, above the discontinuous, stepped line; --- product grade B, below this stepped line. Notes a) P is the pitch of the thread. b) FOR l_nom ≤ 125 mm. c) For 125 mm < l_nom ≤ 200 mm. d) For l_nom > 200 mm. e) k_w,min = 0.7 k_min f)l_{g, min} = l_nom - b l_s,min = l_g,max - 5P

Dimensions of nominal diameter hexagon head bolt, coarse, product grades A and B (second selection) Dimensions

Unit:mm

Designation of thread (d)					M3.5		M14		M18		M22		M27
P^a					0.6		2		2.5		0.7		3
b (informative)			b)		13		34		42		50		60
			e)		19		40		48		56		66
			d)		32		53		61		69		79
c			max.		0.40		0.60		0.8		0.8		0.8
c			min.		0.15		0.15		0.2		0.2		0.2
d_a			max.		4.1		15.7		20.2		24.4		30.4
d_s	Reference dimensions max.				3.50		14.00		18.00		22.00		27.00
	Product grade	A	min.		3.32		13.73		17.73		21.67		--
	Product grade	B	min.		3.20		13.57		17.57		21.48		26.48
d_w	Product grade	A	min.		5.07		19.64		25.34		31.71		--
d_w	Product grade	B	min.		4.95		19.15		24.85		31.35		38
e	Product grade	A	min.		6.58		23.36		30.14		37.72		--
e	Product grade	B	min.		6.44		22.78		29.56		37.29		45.2
l_t			max.		1		3		3		4		6
k	Reference dimensions				2.4		8.8		11.5		14		17
	Product grade	A	max.		2.525		8.98		11.715		14.215		--
	Product grade	A	min.		2.275		8.62		11.285		13.785		--
	Product grade	B	max.		2.6		9.09		11.85		14.35		17.35
	Product grade	B	min.		2.2		8.51		11.15		13.65		13.65
k_w e)	Product grade	A	min.		1.59		6.03		7.9		9.65		--
k_w e)	Product grade	B	min.		1.54		5.96		7.81		9.56		11.66
r			min.		0.1		0.6		0.6		0.8		1
s	Reference dimension = max.				6.00		21.00		27.00		34.00		41
	Product grade	A	min.		5.82		20.67		26.67		33.38		--
	Product grade	B	min.		5.70		20.16		26.16		33.00		40
	Product grade				l_s and l_g^f)
	A		B		l_s and l_g^f)
nom. length	min.	max.	min.	max.	l_s min.	l_g max.	l_s min.	l_g max.	l_s min.	l_g max.	l_s min.	l_g max.	l_s min.	l_g max.
20	19.58	20.42	--	--	4	7
25	24.58	25.42	--	--	9	12
30	29.58	30.42	--	--	14	17
35	34.5	35.5	--	--	19	22	For sizes of bolts with l above the solid, bold, stepped line, table 16 is recommended.
40	39.5	40.5	38.75	41.25
45	44.5	45.5	43.75	46.25
50	49.5	50.5	48.75	51.25
55	54.4	55.6	53.5	56.5
60	59.4	60.6	58.5	61.5			16	26
65	64.4	65.6	63.5	66.5			21	31
70	69.4	70.6	68.5	26			36	48	15.5	28
80	79.4	80.6	78.5	81.5			36	46	25.5	38
90	89.3	90.7	88.25	91.75			46	56	35.5	48	27.5	40
100	99.3	100.7	98.25	101.75			56	66	45.5	58	37.5	50	25	40
110	109.3	110.7	108.25	111.75			66	76	55.5	68	47.5	60	35	50
120	119.3	120.7	118.25	12.75			76	86	65.5	78	57.5	70	45	60
130	129.2	130.8	128	132			80	90	69.5	82	61.5	74	49	64
140	139.2	140.8	138	142			90	100	79.5	92	71.5	84	59	74
150	149.2	150.8	148	152					89.5	102	81.5	94	69	84
160	--	--	158	162					99.5	112	91.5	104	79	94
180	--	--	178	182					119.5	132	111.5	124	99	114
200	--	--	197.7	202.3							131.5	144	119	134
220	--	--	217.7	222.3							138.5	151	126	141
240	--	--	237.7	242.3									146	161
260	--	--	257.4	262.6									166	181

Unit:mm

Designation of thread (d)					M33		M39		M45		M52		M60
P^a					35		4		4.5		5		5.5
b (informative)			b)		--		--		--		--		--
			e)		78		90		102		116		--
			d)		91		103		115		129		145
c			max.		0.8		1.0		1.0		1.0		1.0
c			min.		0.2		0.3		0.3		0.3		0.3
d_a			max.		36.4		42.4		48.6		56.6		67
d_s	Reference dimensions max.				33.00		39.00		45.00		52.00		60.00
	Product grade	A	min.		--		--		--		--		--
	Product grade	B	min.		32.38		38.38		44.38		51.26		59.26
d_w	Product grade	A	min.		--		--		--		--		--
d_w	Product grade	B	min.		46.55		55.86		64.7		74.2		83.41
e	Product grade	A	min.		--		--		--		--		--
e	Product grade	B	min.		55.37		66.44		76.95		88.25		99.21
l_t			max.		6		6		8		10		12
k	Reference dimensions				21		25		28		33		38
	Product grade	A	max.		--		--		--		--		--
	Product grade	A	min.		--		--		--		--		--
	Product grade	B	max.		21.42		25.42		28.42		33.5		38.5
	Product grade	B	min.		20.58		24.58		27.58		32.5		37.5
k_w e)	Product grade	A	min.		--		--		--		--		--
k_w e)	Product grade	B	min.		14.41		17.21		19.31		22.75		26.25
r			min.		1		1		1.2		1.6		2
s	Reference dimension = max.				50		60.0		70.0		80.0		90.0
	Product grade	A	min.		--		--		--		--		--
	Product grade	B	min.		49		58.8		68.1		78.1		87.8
	Product grade				l_s and l_g^f)
	A		B		l_s and l_g^f)
nom. length	min.	max.	min.	max.	l_s min.	l_g max.	l_s min.	l_g max.	l_s min.	l_g max.	l_s min.	l_g max.	l_s min.	l_g max.
130	129.2	130.8	128	132	34.5	52	For sizes of bolts with l above the solid, bold, stepped line, table 16 is recommended.
140	139.2	140.8	138	142	44.5	62
150	149.2	150.8	148	152	54.5	72	40	60
160	--	--	158	162	64.5 84.5 104.5	82 102 122	50 70 90	70
180	--	--	178	182				90	55.5	78
200	--	--	197.7	202.3				110	75.5	98	59	84
220	--	--	217.7	222.3	111.5 131.5 151.5	129 149 169	97 117 137	117 137 157	82.5 102.5 122.5	105 125 145	66 86 106	91
240	--	--	237.7	242.3								111	67.5	95
260	--	--	257.4	262.6								131	87.5	115
280	--	--	277.4	282.6	171.5 191.5 211.5	189 209 229	157 177 197	177 197 217	142.4 162.5 182.5	165 185 205	126 146 166	151 171 191	107.5 127.5 147.5	135 155 175
300	--	--	297.4	302.6
320	--	--	317.15	322.85
340	--	--	337.15	342.85			217 237 257	237 257 277	202.5 222.5 242.5	225 245 265	186 206 226	211 231 251	167.5 187.5 207.5	195 215 235
360	--	--	357.15	362.85
380	--	--	377.15	382.85
400	--	--	397.15	402.85					262.5 282.5 30.5	285 305 325	246 266 286	271 291 311	227.5 247.5 267.5	255 275 295
420	--	--	416.85	423.15
440	--	--	436.85	443.15
460	--	--	456.85	463.15							306 326	331 351	287.5 307.5 327.5	315 335 355
480	--	--	476.85	483.15							306 326	331 351
500	--	--	496.85	503.15
Prefered lengths are defined in terms of l_s and l_g: --- product grade A, above the discontinuous, stepped line; --- product grade B, below this stepped line. Notes a) P is the pitch of the thread. b) FOR l_nom ≤ 125 mm. c) For 125 mm < l_nom ≤ 200 mm. d) For l_nom > 200 mm. e) k_w,min = 0.7 k_min f)l_{g, min} = l_nom - b l_s,min = l_g,max - 5P
