Inconel 718 Heavy Hex Nuts to ASME B18.2.6 Metric Heavy Hex Nuts For Use With Structural Bolts

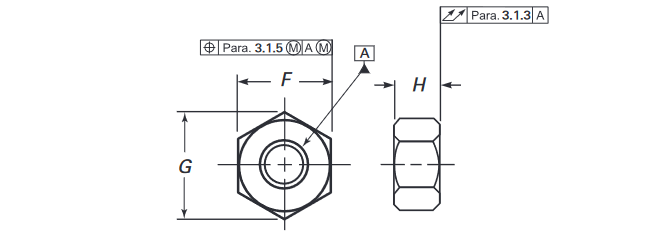

ASME B18.2.6M Metric Heavy Hex Nuts for Use With Structural Bolts Dimensions
| Pitch | Width Across Flats, F | Width Across Corners, G | Thickness, H | Maximum Total Runout of Bearing |
|||
|---|---|---|---|---|---|---|---|
| Max. | Min. | Max. | Min. | Max. | Min. | Surface FIM | |
| M12 × 1.75 | 21.00 | 20.16 | 24.25 | 22.78 | 12.3 | 11.9 | 0.38 |
| M16 × 2.00 | 27.00 | 26.16 | 31.18 | 29.56 | 17.1 | 16.4 | 0.47 |
| M20 × 2.50 | 34.00 | 33.00 | 39.26 | 37.29 | 20.7 | 19.4 | 0.58 |
| M22 × 2.50 | 36.00 | 35.00 | 41.57 | 39.55 | 23.6 | 22.3 | 0.63 |
| M24 × 3.00 | 41.00 | 40.00 | 47.34 | 45.20 | 24.2 | 22.9 | 0.72 |
| M27 × 3.00 | 46.00 | 45.00 | 53.12 | 50.85 | 27.6 | 26.3 | 0.80 |
| M30 × 3.50 | 50.00 | 49.00 | 57.74 | 55.37 | 30.7 | 29.1 | 0.87 |
| M36 × 4.00 | 60.00 | 58.80 | 69.28 | 66.44 | 36.6 | 35.0 | 1.05 |
