Inconel 718 Hex Flange Nuts to ASME B18.2.2 Hex Flange Nuts

ASME B18.2.2 Hex Flange Nuts

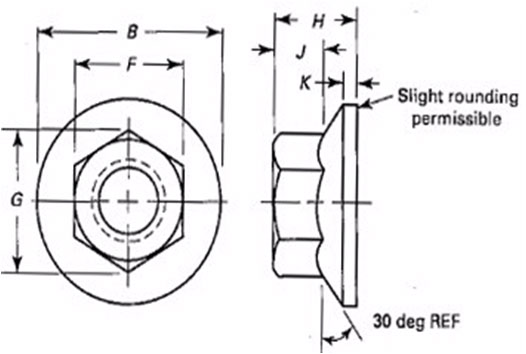

ASME B18.2.2 Hex Flange Nuts Dimensions

Nominal Size
Inch		 Basic Major
Thread Diameter		 Width Across Flats, F Width Across Corners, G Diameter Flange, B Nut Thickness, H Maximum Wrenching Length, J Maximum Flange Thickness, K
Min. Max. Min. Max. Min. Max. Min. Max.
#6 0.1380 0.302 0.312 0.342 0.361 0.406 0.422 0.156 0.171 0.10 0.02
#8 0.1640 0.334 0.344 0.381 0.397 0.452 0.469 0.187 0.203 0.13 0.02
#10 0.1900 0.365 0.375 0.416 0.433 0.480 0.500 0.203 0.219 0.13 0.03
#12 0.2160 0.428 0.438 0.488 0.505 0.574 0.594 0.222 0.236 0.14 0.04
1/4 0.2500 0.428 0.438 0.488 0.505 0.574 0.594 0.222 0.236 0.14 0.04
5/16 0.3125 0.489 0.500 0.557 0.577 0.660 0.680 0.268 0.283 0.17 0.04
3/8 0.3750 0.551 0.562 0.628 0.650 0.728 0.750 0.330 0.347 0.23 0.04
7/16 0.4375 0.675 0.688 0.768 0.794 0.910 0.937 0.375 0.395 0.26 0.04
1/2 0.5000 0.736 0.750 0.840 0.866 1.000 1.031 0.437 0.458 0.31 0.05
9/16 0.5718 0.861 0.875 0.982 1.010 1.155 1.188 0.483 0.506 0.35 0.05
5/8 0.7180 0.922 0.938 1.051 1.083 1.248 1.281 0.545 0.569 0.40 0.05
3/4 0.7500 1.088 1.125 1.240 1.299 1.460 1.500 0.627 0.675 0.46 0.06
