ISO 8675 Thin Hexagon Nuts with Metric Fine Pitch Threads

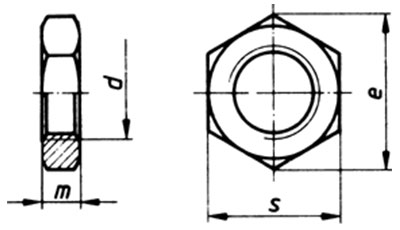

ISO 8675 Thin Hexagon Nuts with Metric Fine Pitch Threads Dimensions
| d mm | s | e min. | m | d2 mm |
|---|---|---|---|---|
| M 1.6 | 3.2 | 3.48 | 1.2 | - |
| M 2 | 4 | 4.32 | 1.6 | 3.1 |
| M 2.5 | 5 | 5.45 | 1.8 | 4.1 |
| M 3 | 5.5 | 6.01 | 2.2 | 4.6 |
| M 4 | 7 | 7.66 | 2.7 | 5.9 |
| M 5 | 8 | 8.79 | 3.2 | 6.9 |
| M 6 | 10 | 11.05 | 3 | 8.9 |
| M 8 | 13 | 14.38 | 4 | 11.6 |
| M 10 | 16 | 17.77 | 5 | 15.6 |
| M 12 | 18 | 20.03 | 6 | 17.4 |
| M 14 | 21 | 23.36 | 7 | 20.5 |
| M 16 | 24 | 26.75 | 8 | 22.5 |
| M 18 | 27 | 29.56 | 9 | - |
| M 20 | 30 | 32.95 | 10 | 27.7 |
| M 22 | 34 | 39.55 | 12 | - |
| M 24 | 36 | 39.55 | 12 | 33.2 |
| M 30 | 46 | 50.85 | 15 | 42.7 |
| M 33 | 50 | 55.37 | 16.5 | - |
| M 36 | 55 | 60.79 | 18 | - |
| M 39 | 60 | 66.44 | 19.5 | - |
| M 42 | 65 | 71.30 | 21 | - |
| M 45 | 70 | 76.95 | 22.5 | - |
