Inconel 718 Hex Nuts to UNI 5588 Hexagon Nuts

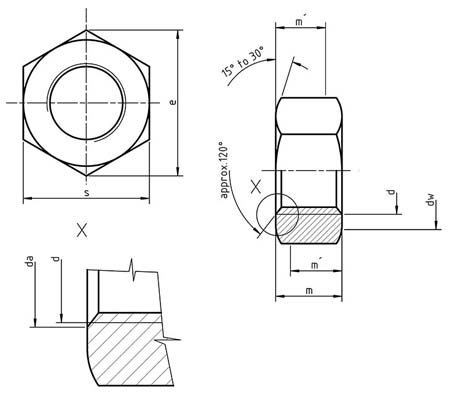

UNI 5588 Hexagon Nuts Dimensions
| Thread d |
p |
c |
da |
dw |
e |
m |
mw |
s |
| preferred threads |
max |
min |
max |
min |
min |
min |
max |
min |
min |
nominal = max |
min |
| M1.6 |
0.35 |
0.20 |
0.10 |
1.84 |
1.60 |
2.40 |
3.41 |
1.30 |
1.05 |
0.80 |
3.20 |
3.02 |
| M2 |
0.4 |
0.20 |
0.10 |
2.30 |
2.00 |
3.10 |
4.32 |
1.60 |
1.35 |
1.10 |
4.00 |
3.82 |
| M2.5 |
0.45 |
0.30 |
0.10 |
2.90 |
2.50 |
4.10 |
5.45 |
2.00 |
1.75 |
1.40 |
5.00 |
4.82 |
| M3 |
0.5 |
0.40 |
0.15 |
3.45 |
3.00 |
4.60 |
6.01 |
2.40 |
2.15 |
1.70 |
5.50 |
5.32 |
| M4 |
0.7 |
0.40 |
0.15 |
4.60 |
4.00 |
5.90 |
7.66 |
3.20 |
2.90 |
2.30 |
7.00 |
6.78 |
| M5 |
0.8 |
0.50 |
0.15 |
5.75 |
5.00 |
6.90 |
8.79 |
4.70 |
4.40 |
3.50 |
8.00 |
7.78 |
| M6 |
1 |
0.50 |
0.15 |
6.75 |
6.00 |
8.90 |
11.05 |
5.20 |
4.90 |
3.90 |
10.0 |
9.78 |
| M8 |
1.25 |
0.60 |
0.15 |
8.75 |
8.00 |
11.60 |
14.38 |
6.80 |
6.44 |
5.20 |
13.00 |
12.73 |
| M10 |
1.5 |
0.60 |
0.15 |
10.80 |
10.00 |
14.60 |
17.77 |
8.40 |
8.04 |
6.40 |
16.00 |
15.73 |
| M12 |
1.75 |
0.60 |
0.15 |
13.00 |
12.00 |
16.60 |
20.03 |
10.80 |
10.37 |
8.30 |
18.00 |
17.73 |
| M16 |
2 |
0.80 |
0.20 |
17.30 |
16.00 |
22.50 |
26.75 |
14.80 |
14.10 |
11.30 |
24.00 |
23.67 |
| M20 |
2.5 |
0.80 |
0.20 |
21.60 |
20.00 |
27.70 |
32.95 |
18.00 |
16.90 |
13.50 |
30.00 |
29.16 |
| M24 |
3 |
0.80 |
0.20 |
25.90 |
24.00 |
33.30 |
39.55 |
21.50 |
20.20 |
16.20 |
36.00 |
35.00 |
| M30 |
3.5 |
0.80 |
0.20 |
32.40 |
30.00 |
42.80 |
50.85 |
25.60 |
24.30 |
19.40 |
46.00 |
45.00 |
| M36 |
4 |
0.80 |
0.20 |
38.90 |
36.00 |
51.10 |
60.79 |
31.00 |
29.40 |
23.50 |
55.00 |
53.80 |
| M42 |
4.5 |
1.00 |
0.30 |
45.40 |
42.00 |
60.00 |
71.30 |
34.00 |
32.40 |
25.90 |
65.00 |
63.10 |
| M48 |
5 |
1.00 |
0.30 |
51.80 |
48.00 |
69.50 |
82.60 |
38.00 |
36.40 |
29.10 |
75.00 |
73.10 |
| M56 |
5.5 |
1.00 |
0.30 |
60.50 |
56.00 |
78.70 |
93.56 |
45.00 |
43.40 |
34.70 |
85.00 |
82.80 |
| M64 |
6 |
1.00 |
0.30 |
69.10 |
64.00 |
88.20 |
104.86 |
51.00 |
49.10 |
39.30 |
95.00 |
92.80 |
| Thread d |
p |
c |
da |
dw |
e |
m |
mw |
s |
| non-preferred threads |
max |
min |
max |
min |
min |
min |
max |
min |
min |
nominal = max |
min |
| M3.5 |
0.6 |
0.40 |
0.15 |
4.00 |
3.50 |
5.00 |
6.58 |
2.80 |
2.55 |
2.00 |
6.00 |
5.82 |
| M14 |
2 |
0.60 |
0.15 |
15.10 |
14.00 |
19.60 |
23.36 |
12.80 |
12.10 |
9.70 |
21.00 |
20.67 |
| M18 |
2.5 |
0.80 |
0.20 |
19.50 |
18.00 |
24.90 |
29.56 |
15.80 |
15.10 |
12.10 |
27.00 |
26.16 |
| M22 |
2.5 |
0.80 |
0.20 |
23.70 |
22.00 |
31.40 |
37.29 |
19.40 |
18.10 |
14.50 |
34.00 |
33.00 |
| M27 |
3 |
0.80 |
0.20 |
29.10 |
27.00 |
38.00 |
45.20 |
23.80 |
22.50 |
18.00 |
41.00 |
40.00 |
| M33 |
3.5 |
0.80 |
0.20 |
35.60 |
33.00 |
46.60 |
55.37 |
28.70 |
27.40 |
21.90 |
50.00 |
49.00 |
| M39 |
4 |
1.00 |
0.30 |
42.10 |
39.00 |
55.90 |
66.44 |
33.40 |
31.80 |
25.40 |
60.00 |
58.80 |
| M45 |
4.5 |
1.00 |
0.30 |
48.60 |
45.00 |
64.70 |
76.95 |
36.00 |
34.40 |
27.50 |
70.00 |
68.10 |
| M52 |
5 |
1.00 |
0.30 |
56.20 |
52.00 |
74.20 |
88.25 |
42.00 |
40.40 |
32.30 |
80.00 |
78.10 |
| M60 |
5.5 |
1.00 |
0.30 |
64.80 |
60.00 |
83.40 |
99.21 |
48.00 |
46.40 |
37.10 |
90.00 |
87.80 |
