Inconel 718 Dowel Pins to ASME B18.8.7M Headless Clevis Pins

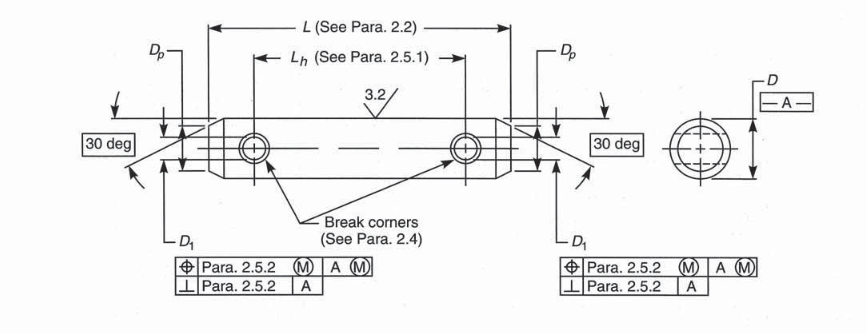

ASME B18.8.7M Headless Clevis Pins Dimensions
| Type A and B | Type B Only | ||||||
|---|---|---|---|---|---|---|---|
| D | Dp | D1 | |||||
| Pin Diameter | Point Diameter | Hole Diameter | |||||
| Nominal | Max | Min | Max | Min | Nominal | Max | Min |
| 3 | 3.00 | 2.94 | 2.2 | 1.8 | 0.8 | 0.94 | 0.80 |
| 4 | 4.000 | 3.925 | 3.2 | 2.8 | 1 | 1.14 | 1.00 |
| 5 | 5.000 | 4.925 | 3.3 | 2.7 | 1.2 | 1.34 | 1.20 |
| 6 | 6.000 | 5.925 | 4.3 | 3.7 | 1.6 | 1.74 | 1.60 |
| 8 | 8.00 | 7.91 | 6.3 | 5.7 | 2 | 2.14 | 2.00 |
| 10 | 10.00 | 9.91 | 8.3 | 7.7 | 3 | 3.38 | 3.20 |
| 12 | 12.00 | 11.90 | 9.5 | 8.5 | 3 | 3.38 | 3.20 |
| 14 | 14.00 | 13.90 | 11.5 | 10.5 | 4 | 4.18 | 4.00 |
| 16 | 16.00 | 15.90 | 13.5 | 12.5 | 4 | 4.18 | 4.00 |
| 18 | 18.00 | 17.90 | 15.5 | 14.5 | 5 | 5.18 | 5.00 |
| 20 | 20.00 | 19.87 | 16.6 | 15.4 | 5 | 5.18 | 5.00 |
| 22 | 22.00 | 21.87 | 18.6 | 17.4 | 5 | 5.18 | 5.00 |
| 24 | 24.00 | 23.87 | 20.6 | 19.4 | 6.3 | 6.52 | 6.30 |
| 27 | 24.50 | 26.87 | 23.6 | 22.4 | 6.3 | 6.52 | 6.30 |
| 30 | 30.00 | 29.87 | 26.6 | 25.4 | 8 | 8.22 | 8.00 |
| 33 | 33.00 | 32.84 | 29.6 | 28.4 | 8 | 8.22 | 8.00 |
| 36 | 36.00 | 35.84 | 32.6 | 31.4 | 8 | 8.22 | 8.00 |
| 40 | 40.00 | 39.84 | 36.6 | 35.4 | 8 | 8.22 | 8.00 |
| 45 | 45.00 | 44.84 | 41.6 | 40.4 | 10 | 10.22 | 10.00 |
| 50 | 50.00 | 49.84 | 46.6 | 45.4 | 10 | 10.22 | 10.00 |
| 55 | 55.00 | 54.81 | 50.0 | 48.0 | 10 | 10.22 | 10.00 |
| 60 | 60.00 | 59.81 | 55.0 | 53.0 | 10 | 13.27 | 10.00 |
| 70 | 70.00 | 69.31 | 65.0 | 63.0 | 13 | 13.27 | 13.00 |
| 80 | 80.00 | 79.81 | 75.0 | 73.0 | 13 | 13.27 | 13.00 |
| 90 | 90.00 | 89.78 | 85.0 | 83.0 | 13 | 13.27 | 13.00 |
| 100 | 100.00 | 99.78 | 95.0 | 93.0 | 13 | 13.27 | 13.00 |
| See para. 2.1 | 2.3 | 2.4 | |||||
