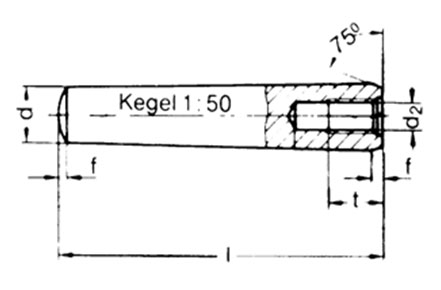

Inconel 718 Taper Pins to DIN 8736 Taper Pins With Internal Threads
DIN 8736 Taper pins with internal thread Dimensions
| d | d2 | t1 | a | t2 min |
|---|---|---|---|---|
| 6 | M 4 | 6 | 0.8 | 10 |
| 8 | M 5 | 8 | 1 | 12 |
| 10 | M 6 | 10 | 1.2 | 16 |
| 12 | M 8 | 12 | 1.6 | 20 |
| 16 | M 10 | 16 | 2 | 25 |
| 20 | M 12 | 18 | 2.5 | 27 |
| d | d2 | t1 | a | t2 min |
|---|---|---|---|---|
| 6 | M 4 | 6 | 0.8 | 10 |
| 8 | M 5 | 8 | 1 | 12 |
| 10 | M 6 | 10 | 1.2 | 16 |
| 12 | M 8 | 12 | 1.6 | 20 |
| 16 | M 10 | 16 | 2 | 25 |
| 20 | M 12 | 18 | 2.5 | 27 |
